Fishery
Fishery & Seafood Ice Solutions
Soft, thick, slow-melting flake ice that cools fish fast, lasts longer and helps you sell more. See why flake ice quality matters for seafood business.
Explore solution
Flake ice machine · 10 t/day

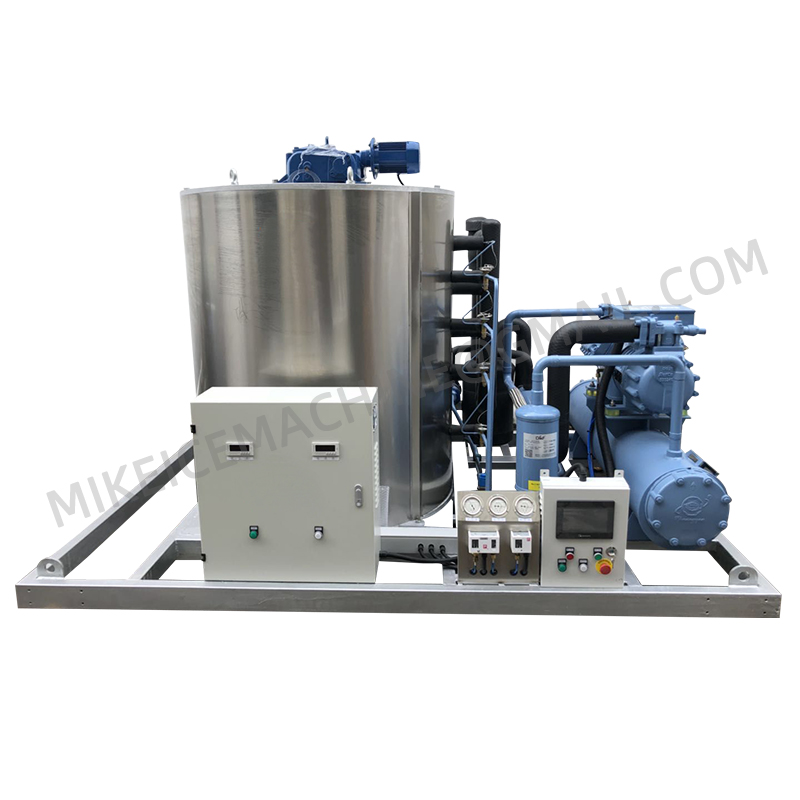

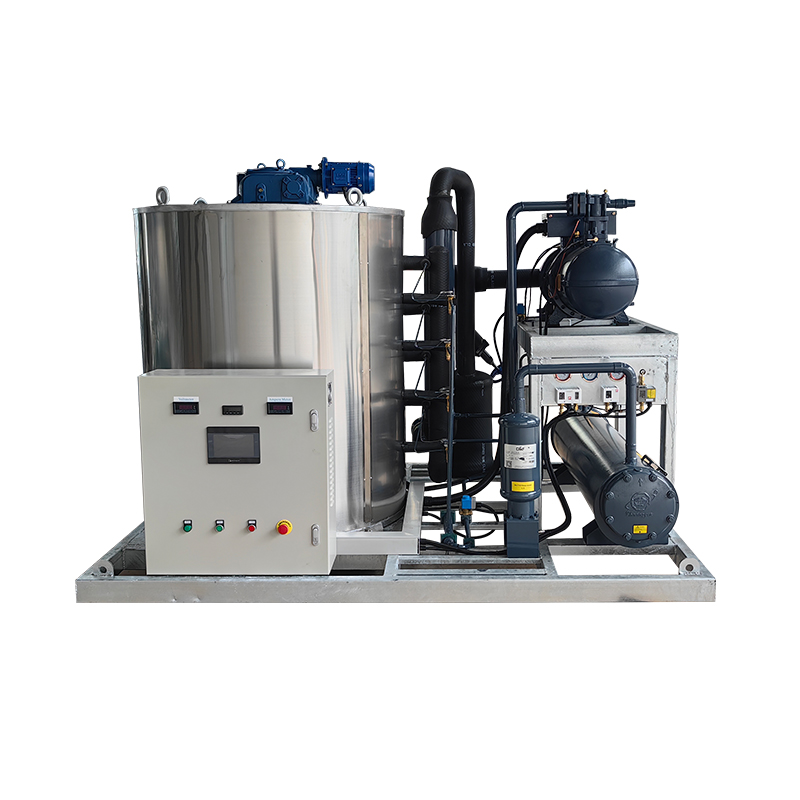

10 Ton Flake Ice Machine
Industrial flake ice machine for fish markets, seafood processing, poultry, vegetables and concrete cooling. It produces dry, soft flake ice for fast contact cooling.
Custom quoteFOB China · based on final configuration
Capacity10 tons / 24h
Ice typeDry flake ice
CoolingAir-cooled or water-cooled
Standard working conditionDirect evaporation drum
FisheryFood processingConcrete cooling
Specifications
Technical specifications
| Model | MIMF10T |
| Running Power | 31.75 KW |
| Ice Thickness | ≈2.5mm |
| Ice Temperature | -5℃ |
| Refrigerant | R404a, R448a, R449a, or else |
| Power Supply | 3 phase industrial power supply |
| Ice Daily Productive Capacity | 10000 Kgs of ice flakes per 24 hours |
| Standard Working Condition | 30℃ ambient and 20℃ water temperature |
| Power Consumption | 75 KWH of electricity for making every 1 ton of ice flakes |
Running Video
Watch It Running
Key Features
Why Choose This Machine
❄
Plenty of ice productionMore than 10,000 kgs of ice per day in summer hot workingrncondition.❄
Thicker and stronger ice flakeslce flakes are more than 2.5mm, and they are with morerncooling power than thin ice.🌍
Top brand components80% of the components are intemational famous brands.⚡
Power-saving with lower electricity consumptionLower electricity to make the same amount of ice, and thatrnallow you to Rol quickly.Applications
Fishery
Food Processing
Hospitality
Related ice making applications
Fishery
Food Processing
Food Processing Ice Solutions
Use dry flake ice for slaughterhouses, poultry plants, meat processing, seafood handling and vegetable cooling where fast heat removal and hygiene matter.
Explore solution Hospitality
Hotel & Restaurant Ice Solutions
Commercial tube ice and flake ice solutions for beverage service, buffets, central kitchens, bakery dough cooling and hospitality operations.
Explore solutionFAQ
FAQ
How do I determine whether a 10-ton flake ice machine is enough for concrete cooling?
Calculate your formula: (Ice dose per batch × batches per shift) + peak surge margin. Rated at 10,000 kg/24h (at 30°C ambient / 20°C water), the MIMF10T must be sized against site temperatures and concrete water-ratio specs. See our concrete cooling guide for complete batch calculations.
Can a 10-ton flake ice plant feed ice automatically into a batching plant?
Yes. The MIMF10T can be integrated with an automatic rake storage bin, screw conveyors, and load-cell batching hoppers linked directly to your batching plant's PLC. Specify transfer distance, dosing cycle times, and interface protocols. Learn more in our ice conveyor systems guide.
How should ice storage be sized for a 10 ton/day plant?
Size usable capacity based on peak pour demand minus real-time production (~417 kg/hr). For example, pulling 5,000 kg over 2 hours requires at least 4,200 kg of pre-stored ice in buffer. Verify replenishment cycles between pours using our ice machine sizing guide.
Should I install one 10-ton machine or two 5-ton units for redundancy?
A single 10-ton unit minimizes initial investment, piping complexity, and footprint. Dual 5-ton units provide 50% backup capacity during maintenance or breakdowns, though at a higher purchase cost. Choose based on project downtime penalties and budget limits.
How do I calculate the total operating cost of a 10-ton ice plant?
Combine electricity, water, maintenance, and consumables against net ice yield. At rated load, the MIMF10T draws ~75 kWh per ton (approx. 750 kWh for 10 tons), plus auxiliary power for storage cooling and conveying. Calculate local costs with our ice machine power consumption guide.
Get a quick quote.
Tell us your detailed requirements about the ice machine, and we will send you the price, specs and so on.
