Super Purchasing for Clear Ice Maker - 0.5T flake ice machine – Herbin Ice Systems Detail:

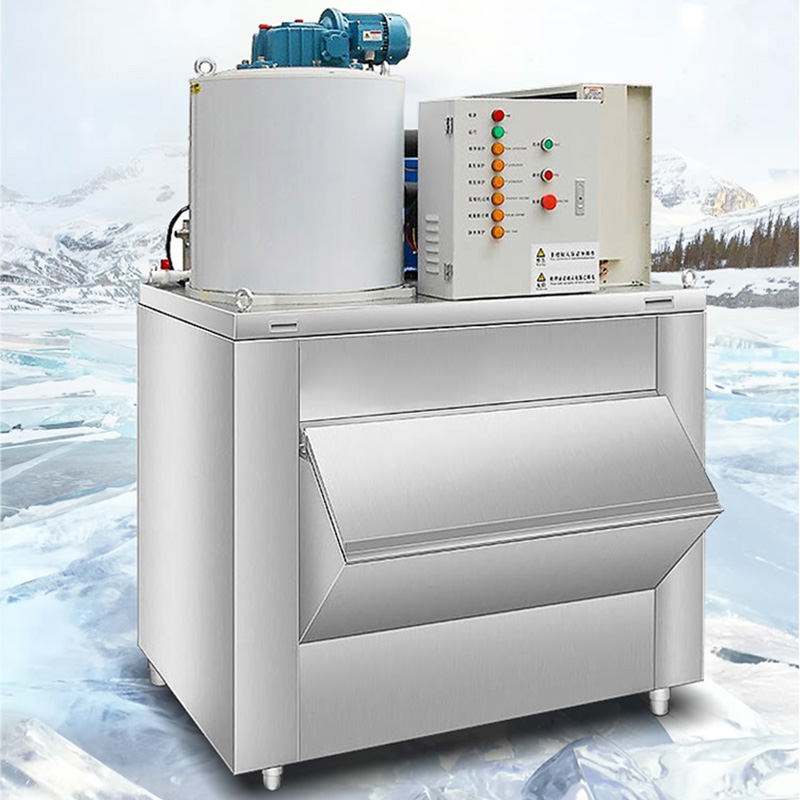

500kg/day flake ice machine + 300kg ice storage bin.

0.5T flake ice machine (1)

The machine has plug-and-play design. It is ready for ice making after simple connection with water and power. Ice comes out within 5 minutes after user press the start button.

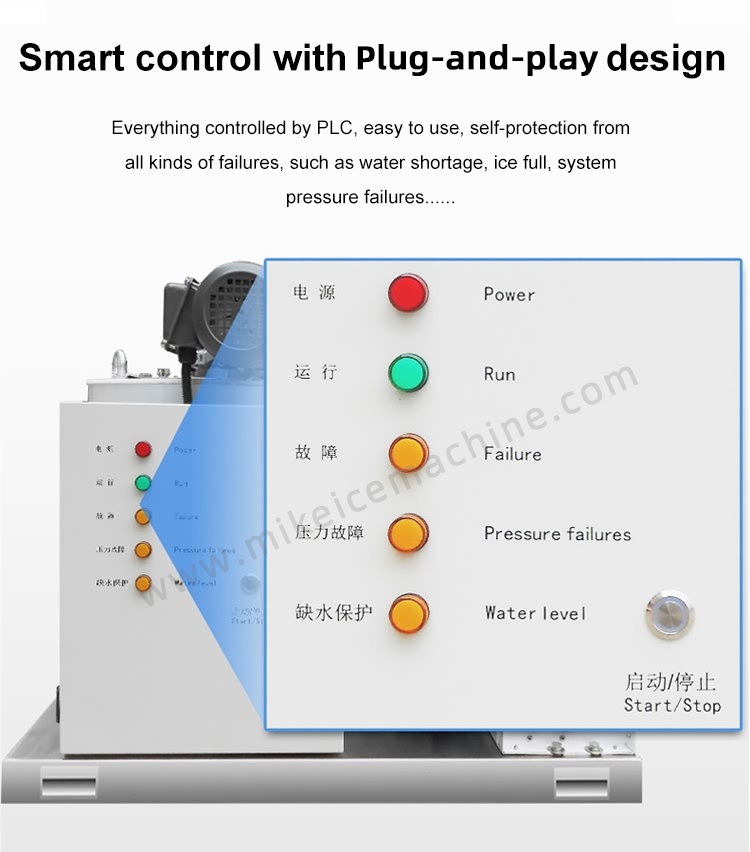

All jobs of ice making are done full automatically under the control of PLC.

The system will protect itself away from water shortage/ ice bin full/ unstable power supply/ extreme high or cold ambient temperature / and other kinds of failures.

0.5T flake ice machine (2)W

The designed evaporating temperature is minus 20C, which guarantee very good quality ice flakes. Well-frozen dry and thick ice flakes come out from the machine.

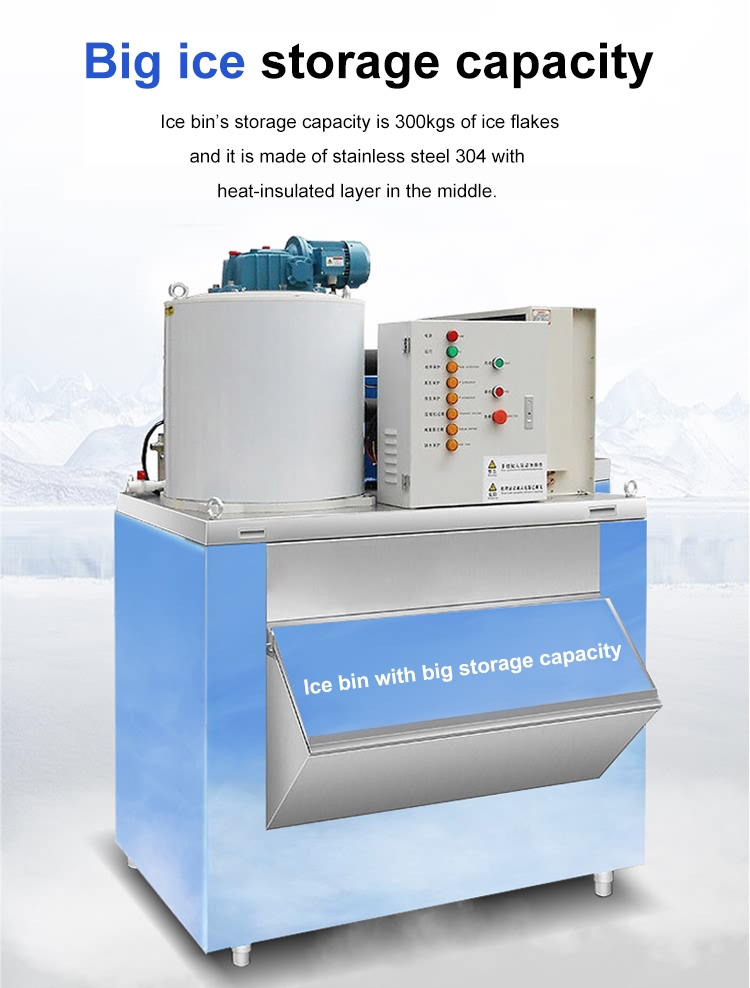

The 500kg/day flake ice machine’s ice bin can storage 300lgs of ice flakes, which are more then the ice made in night time. So the user can leave the machine and make it work by itself in night time. Ice bin will be filled with a lot of ice when the user open the door of the ice bin in the morning.

80% of the components on the ice machine are international famous brands to guarantee good working performance and long service time.

0.5T flake ice machine (3)

Ice flakes made by our flake ice machines are well-frozen with the best cooling performance. Ice flakes are thick and dry.

Around 0.5 tons of such high quality ice flakes can be made everyday within 24 hours, and that ice daily productive capacity is based on 25C ambient temperature, 20C inlet water temperature.

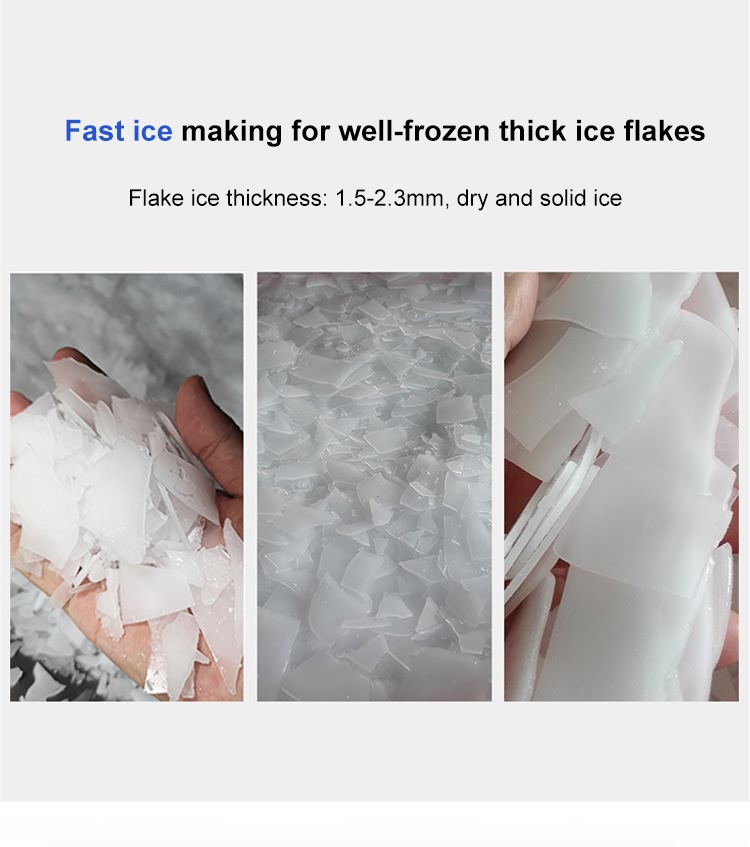

The ice thickness rane is between 1.5-2.3mm. And the ice thickness is adjustable.

Such ice flakes are widely used for freezing fish, keeping food fresh, food processing, concrete cooling, on board fish icing, chemical use and so on.

They are made by Green power-saving flake ice machines, and the power consumption for making every 1 ton of ice flakes is only 75KWH.

0.5T flake ice machine (4) 0.5T flake ice machine (5) 0.5T flake ice machine (6) 0.5T flake ice machine (7) 0.5T flake ice machine (8) 0.5T flake ice machine (9)

Dry and well-frozen ice flakes with perfect cooling performance. Ice flakes can be used for freezing seafood, keeping food fresh, food processing, concrete cooling, on board fish icing, chemical use and so on.

1_10 1_11 1_12

Ice daily productive capacity: 500 kgs of ice flakes per 24 hours.

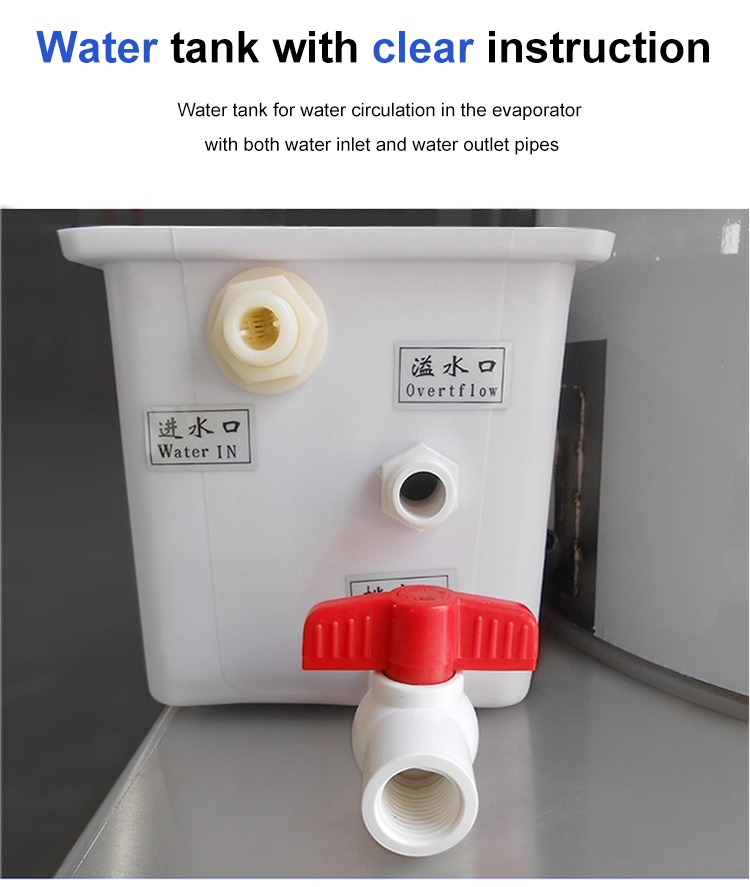

Water resource: Freshwater from hose

Power supply: 3 phase industrial power

Capacity: 2.88KW

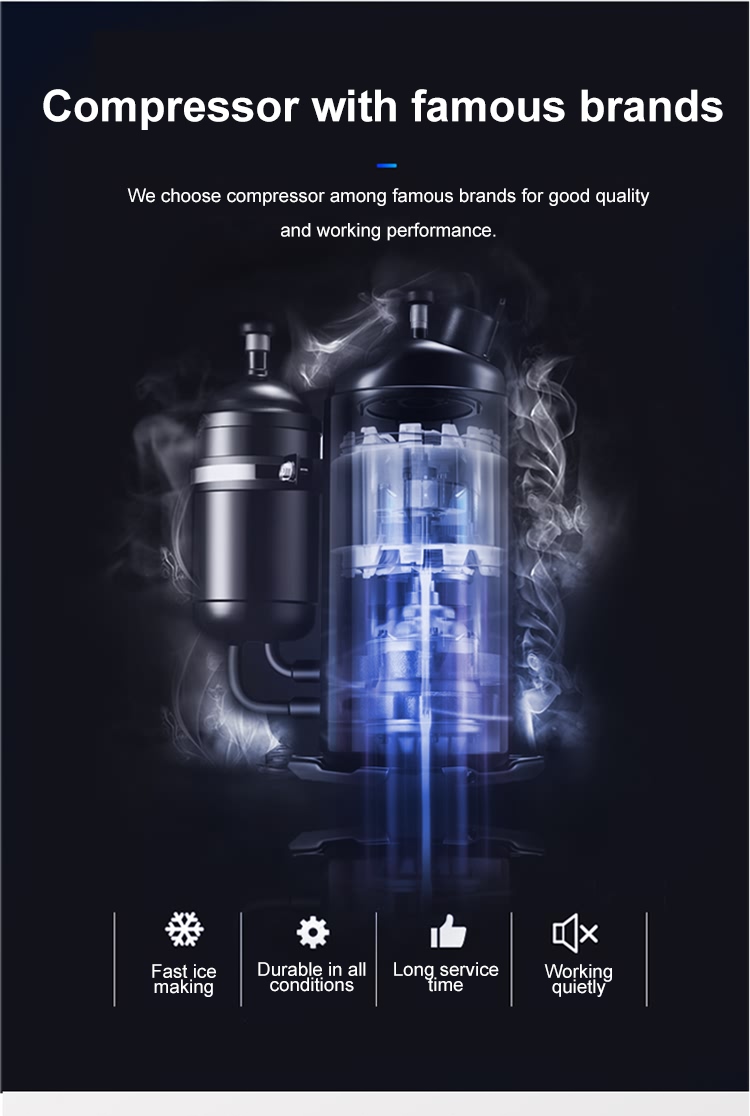

Compressor: Danfoss

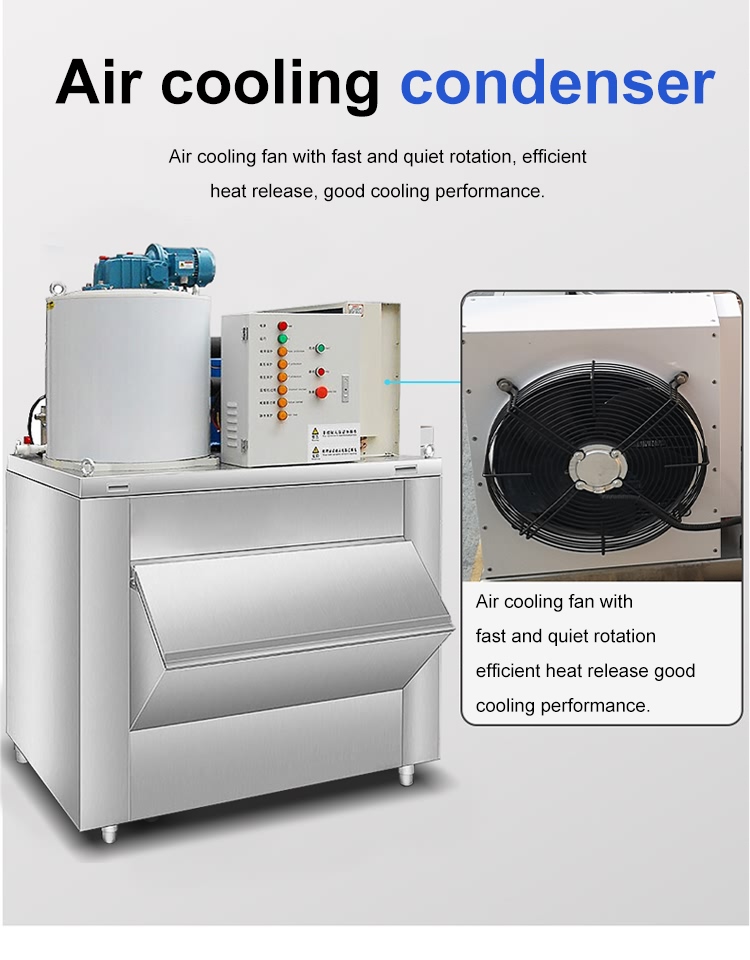

Condenser: Air cooling condenser

Refrigerant: R22/R404a

Refrigeration capacity: 3KW

Flake ice machine dimension: 1210x790x805mm

Flake ice bin dimension: 1220x1080x1000mm

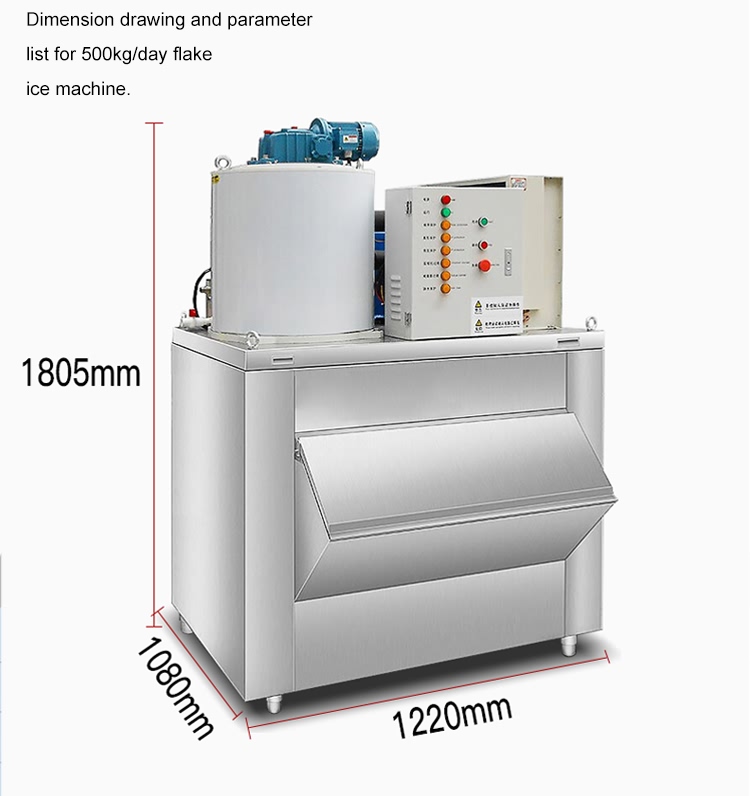

Total dimension: 1220x1080x1805mm

Flake ice storage capacity: 300 kgs of ice flakes

Net weight of the ice machine: 200 kgs

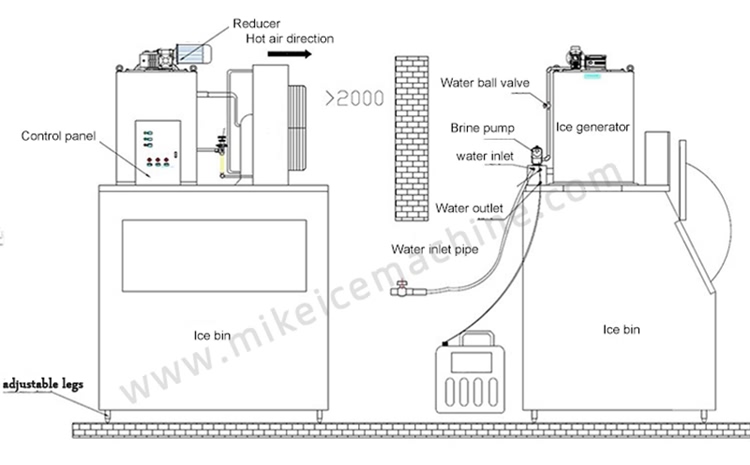

Instruction for installation

(1) Power supply: The flake ice machine should work with 3 phase industrial use flake ice machine. And the machine should be connected to a correctly rated earth leakage cut-out device.

(2) Water resource: Freshwater from hose with the water pressure of 1.5-3 bars. And it should be less than 1.5 meter away from the ice machine.

(3) Location for installation should be well-ventilated. Do not locate the ice machine in a wet area. Keep it away from sunlight, rain, or hot air. Its standard working condition is 25C ambient temperature with 20C inlet water temperature.

(4) The ground should be flat with water draining hole.

(5) Make sure the air cooling fan face nothing, so the hot air can be released easily. Keep it at least 2 meter away from a wall.

0.5T flake ice machine (10) 0.5T flake ice machine (11) 0.5T flake ice machine (12) 0.5T flake ice machine (13) 0.5T flake ice machine (14) 0.5T flake ice machine (15) 0.5T flake ice machine (16)
